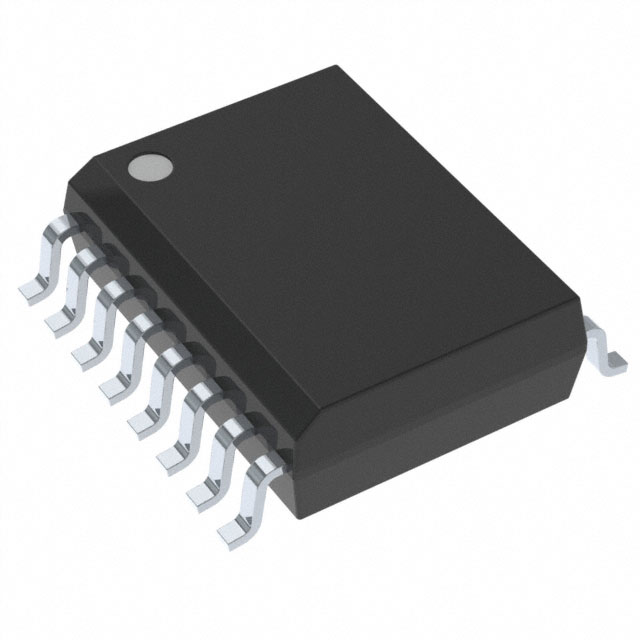

Same model may have multiple batches, images only for reference.

UCC21550ADWR
Manufacturer No: UCC21550ADWR
Manufacturer: Texas Instruments
SUVSysrem No: UCC21550ADWR
Package: Tape & Reel (TR)
Datasheet: UCC21550ADWR
Description: 4A, 6A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

UCC21550ADWR information
Product Attributes Attribute Value
Category Isolators
Manufacturer Texas Instruments
Package Tape & Reel (TR)
Description 4A, 6A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC
Package / Case16-SOIC (0.295", 7.50mm Width)
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 150°C
Current - Peak Output4A, 6A
TechnologyCapacitive Coupling
Current - Output High, Low4A, 6A
Voltage - Isolation5000Vrms
Approval AgencyUL, VDE
Supplier Device Package16-SOIC
Rise / Fall Time (Typ)8ns, 8ns
Common Mode Transient Immunity (Min)125V/ns
Propagation Delay tpLH / tpHL (Max)45ns, 45ns
Pulse Width Distortion (Max)5ns
Number of Channels2
Voltage - Output Supply6.5V ~ 25V
