UCC27284DRCT Texas Instruments Integrated Circuits (ICs) distributor and supplier

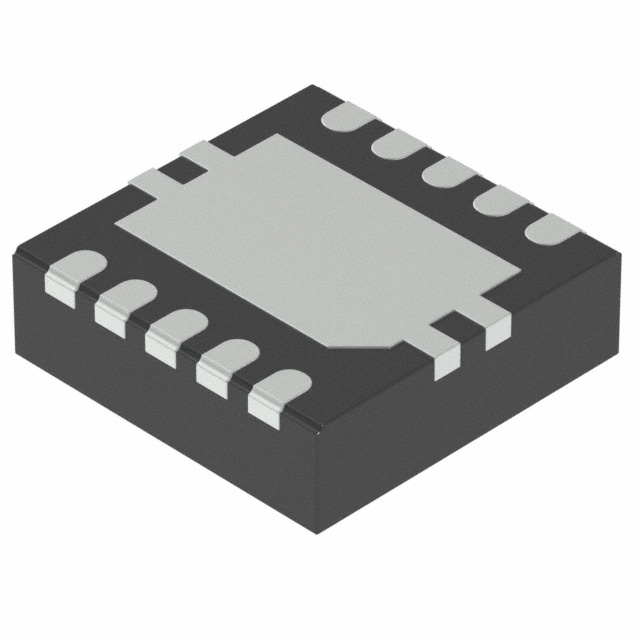

Same model may have multiple batches, images only for reference.

UCC27284DRCT
Manufacturer No:	UCC27284DRCT
Manufacturer:	Texas Instruments
SUVSysrem No:	UCC27284DRCT
Package:	Tape & Reel (TR)
Datasheet:	UCC27284DRCT
Description:	Half-Bridge Gate Driver IC Non-Inverting 10-VSON (3x3)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

UCC27284DRCT information

Product Attributes	Attribute Value
Category	Integrated Circuits (ICs)
Manufacturer	Texas Instruments
Package	Tape & Reel (TR)
Description	Half-Bridge Gate Driver IC Non-Inverting 10-VSON (3x3)
Package / Case	10-VFDFN Exposed Pad
Mounting Type	Surface Mount, Wettable Flank
Operating Temperature	-40°C ~ 125°C
Voltage - Supply	5.5V ~ 16V
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	100 V
Supplier Device Package	10-VSON (3x3)
Rise / Fall Time (Typ)	10ns, 10ns
Channel Type	Independent
Driven Configuration	Half-Bridge
Number of Drivers	2
Gate Type	N-Channel MOSFET
Logic Voltage - VIL, VIH	1.3V, 1.9V
Current - Peak Output (Source, Sink)	3A, 3A

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
