| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
Tuchel / Amphenol |
| Package |
Box |
| Description |

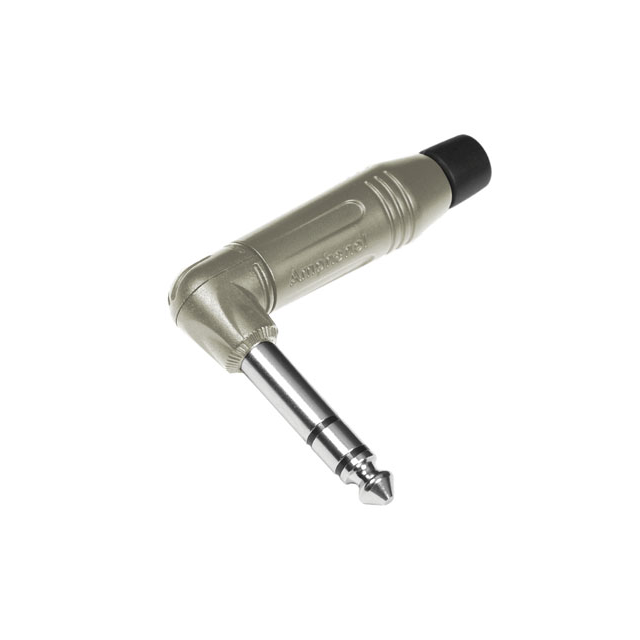

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) |
| Connector Type | Phone Plug |
| Gender | Male |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 70°C |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Termination | Solder Eyelet(s) |
| Cable Opening | 0.118" ~ 0.256" (3.00mm ~ 6.50mm) |
| Contact Material | Brass |
| Housing Material | Zinc Die Cast |
| Body Color | Silver |
| Contact Material - Plating | Nickel |
| Actual Diameter | 0.249" (6.32mm) |
| Mating Length/Depth | 1.205" (30.61mm) |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Current Rating (Amps) | 10 A |
