AT13-08PD-BM05CP Tuchel / Amphenol Connectors, Interconnects distributor and supplier

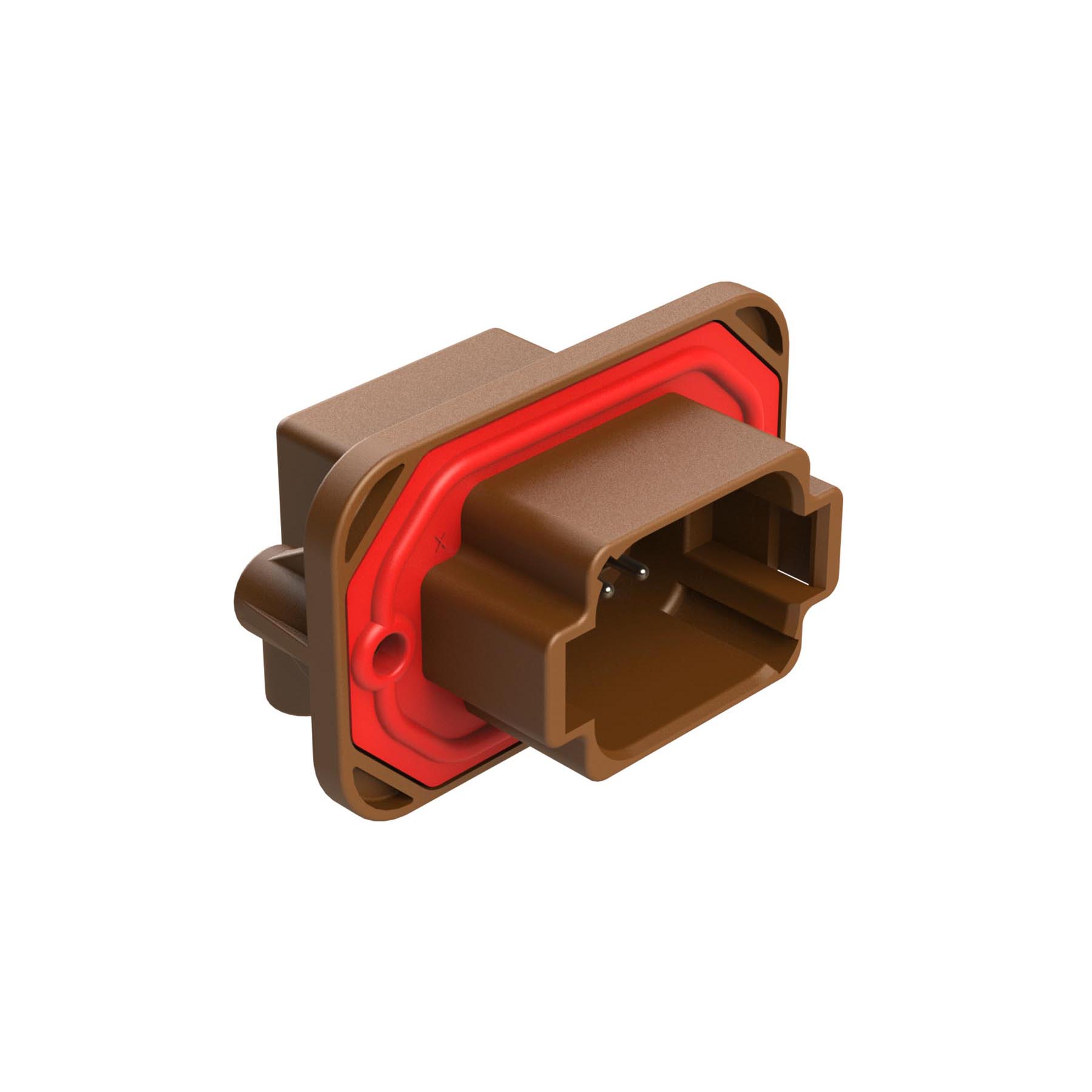

Same model may have multiple batches, images only for reference.

AT13-08PD-BM05CP
Manufacturer No:	AT13-08PD-BM05CP
Manufacturer:	Tuchel / Amphenol
SUVSysrem No:	AT13-08PD-BM05CP
Package:	Tray
Datasheet:	AT13-08PD-BM05CP
Description:	Connector Header Panel Mount, Through Hole, Right Angle 8 position
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AT13-08PD-BM05CP information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Tuchel / Amphenol
Package	Tray
Description	Connector Header Panel Mount, Through Hole, Right Angle 8 position
Features	Board Guide, Mounting Flange
Connector Type	Receptacle
Voltage Rating	250VDC
Current Rating (Amps)	13A
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	8
Number of Rows	2
Style	Board to Cable/Wire
Operating Temperature	-55°C ~ 125°C
Contact Type	Male Pin
Fastening Type	Latch Holder
Number of Positions Loaded	All
Termination	Solder
Ingress Protection	IP67
Contact Material	Copper Alloy
Insulation Color	Brown
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Shape	Circular
Contact Length - Post	0.122" (3.10mm)
Insulation Height	1.390" (35.30mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Thermoplastic
Row Spacing - Mating	0.358" (9.10mm)
