| Product Attributes |
Attribute Value |
| Category |
Discrete Semiconductor Products |
| Manufacturer |
Vishay |
| Package |
Tape & Reel (TR) |
| Description |
Diode 600 V 3.5A Surface Mount SlimDPAK |

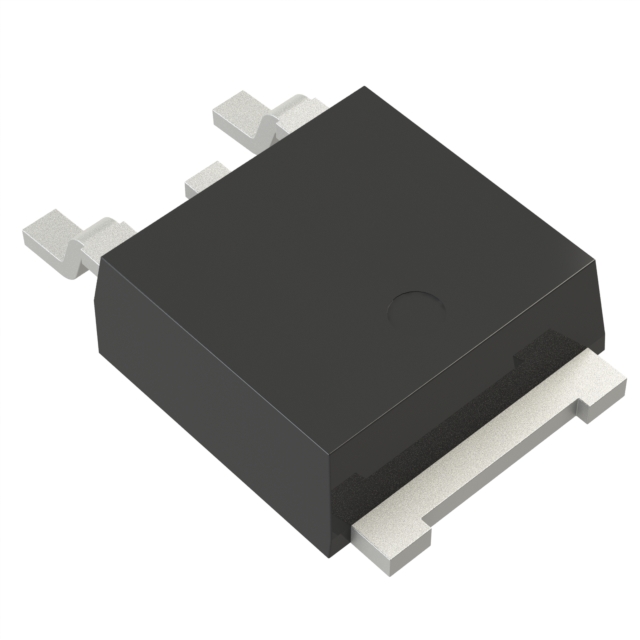

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2.4 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 58pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3.5A |
| Supplier Device Package | SlimDPAK |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.12 V @ 8 A |
| Current - Reverse Leakage @ Vr | 15 µA @ 600 V |
| Qualification | AEC-Q101 |
