VS-C5PX3006L-N3 Vishay Discrete Semiconductor Products distributor and supplier

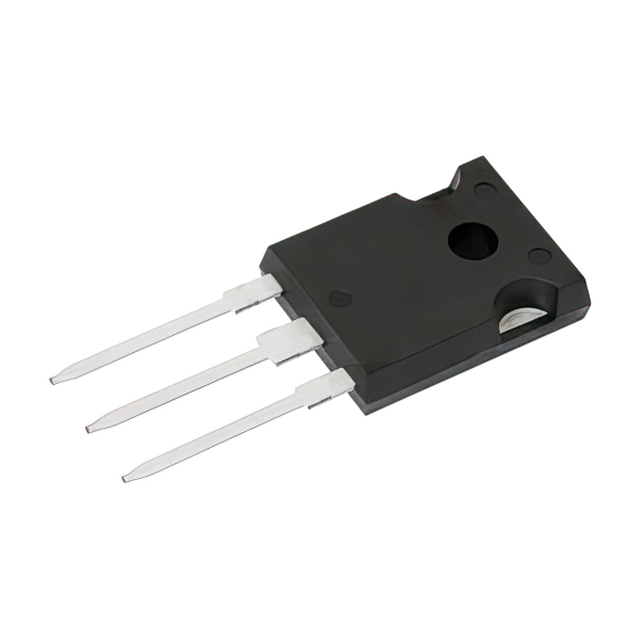

Same model may have multiple batches, images only for reference.

VS-C5PX3006L-N3
Manufacturer No:	VS-C5PX3006L-N3
Manufacturer:	Vishay
SUVSysrem No:	VS-C5PX3006L-N3
Package:	Tape & Reel (TR)
Datasheet:	VS-C5PX3006L-N3
Description:	Diode Array 1 Pair Common Cathode 600 V 15A Through Hole TO-247-3
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

VS-C5PX3006L-N3 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Vishay
Package	Tape & Reel (TR)
Description	Diode Array 1 Pair Common Cathode 600 V 15A Through Hole TO-247-3
Package / Case	TO-247-3
Mounting Type	Through Hole
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	33 ns
Technology	Standard
Diode Configuration	1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)	15A
Supplier Device Package	TO-247AD
Operating Temperature - Junction	-55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max)	600 V
Voltage - Forward (Vf) (Max) @ If	2.1 V @ 15 A
Current - Reverse Leakage @ Vr	10 µA @ 600 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
