| Product Attributes |
Attribute Value |
| Category |
Discrete Semiconductor Products |
| Manufacturer |
Vishay General Semiconductor – Diodes Division |
| Package |
Tape & Reel (TR) |
| Description |

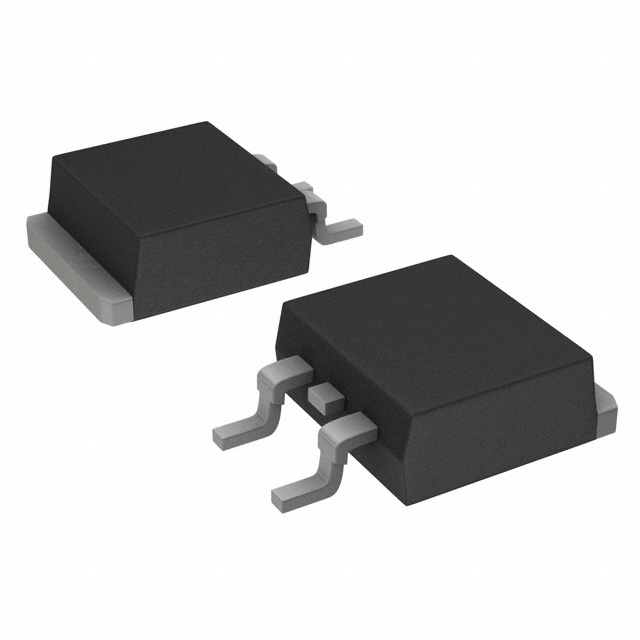

SCR 1.2 kV 25 A Standard Recovery Surface Mount TO-263AB (D2PAK) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 45 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A @ 50Hz |
| Current - On State (It (AV)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - On State (Vtm) (Max) | 1.25 V |
| Current - Off State (Max) | 500 µA |
| Supplier Device Package | TO-263AB (D2PAK) |
| Grade | Automotive |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 1.2 kV |
| Qualification | AEC-Q101 |
