| Product Attributes |
Attribute Value |
| Category |
Discrete Semiconductor Products |
| Manufacturer |
Vishay General Semiconductor – Diodes Division |
| Package |
Tube |
| Description |

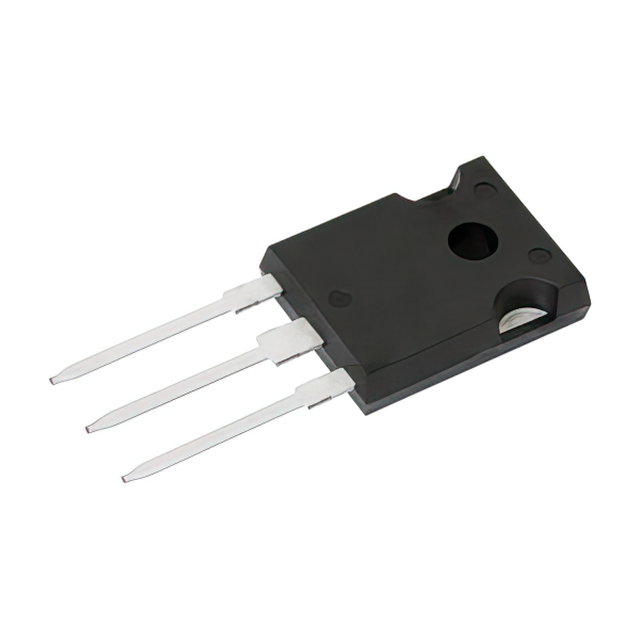

SCR 1.2 kV 79 A Standard Recovery Through Hole TO-247AD |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 60 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 630A |
| Current - On State (It (AV)) (Max) | 50 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 50 µA |
| Supplier Device Package | TO-247AD |
| Current - On State (It (RMS)) (Max) | 79 A |
| Voltage - Off State | 1.2 kV |
