| Product Attributes |
Attribute Value |
| Category |
Discrete Semiconductor Products |
| Manufacturer |
WeEn Semiconductors Co., Ltd |
| Package |
Bulk |
| Description |

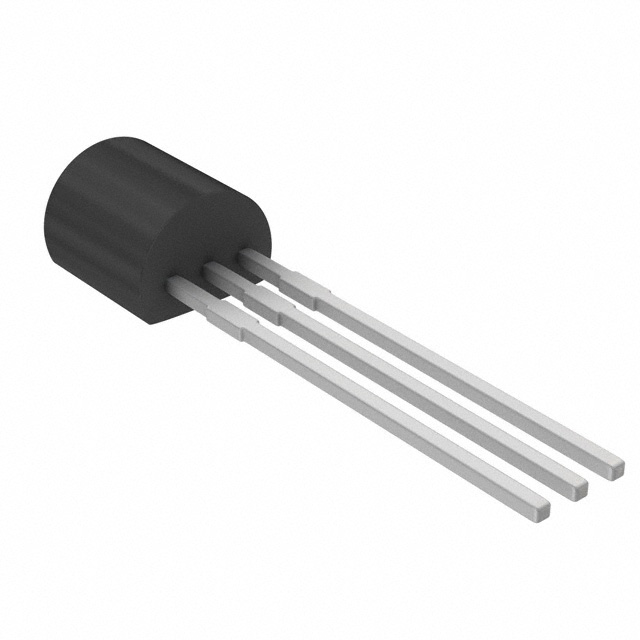

SCR 1.25 kV 1.25 A Sensitive Gate Through Hole TO-92-3 |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 90 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 22A |
| Current - On State (It (AV)) (Max) | 800 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.3 V |
| Current - Off State (Max) | 1 µA |
| Supplier Device Package | TO-92-3 |
| Current - On State (It (RMS)) (Max) | 1.25 A |
| Voltage - Off State | 1.25 kV |
