| Product Attributes |
Attribute Value |
| Category |
Discrete Semiconductor Products |
| Manufacturer |
Zetex Semiconductors (Diodes Inc.) |
| Package |
Tape & Reel (TR) |
| Description |

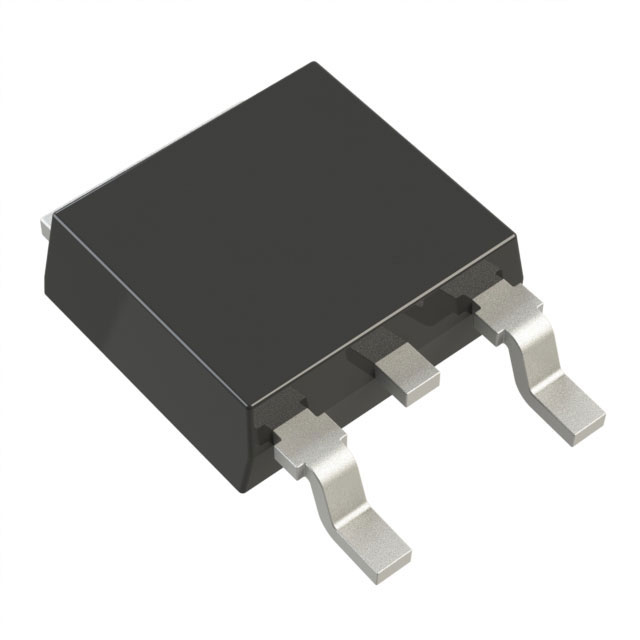

Bipolar (BJT) Transistor NPN 80 V 8 A 3MHz 1.5 W Surface Mount TO-252 (DPAK) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A |
| Current - Collector Cutoff (Max) | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 2A, 1V |
| Frequency - Transition | 3MHz |
| Supplier Device Package | TO-252 (DPAK) |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 1.5 W |
| Qualification | AEC-Q101 |
