9001157 KYOCERA AVX RF and Wireless distributor and supplier

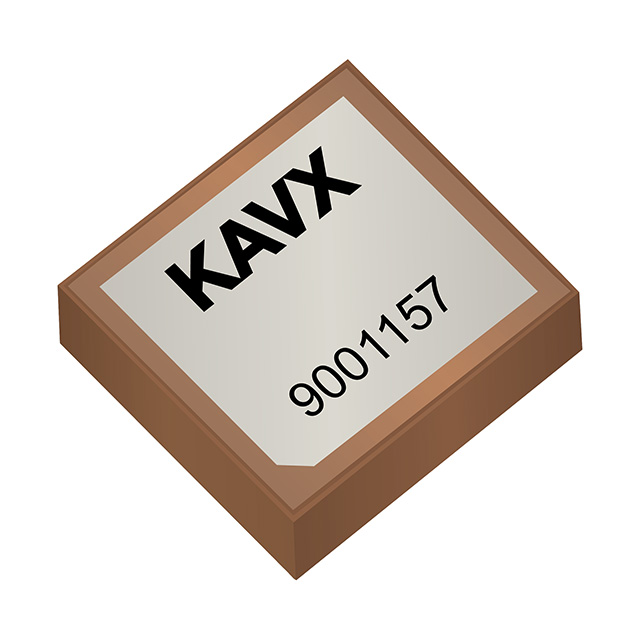

Same model may have multiple batches, images only for reference.

9001157
Manufacturer No:	9001157
Manufacturer:	KYOCERA AVX
SUVSysrem No:	9001157
Package:	Tray
Datasheet:	9001157
Description:	1.58GHz, 1.6GHz GLONASS, GPS Ceramic Patch RF Antenna 1.56GHz ~ 1.59GHz, 1.59GHz ~ 1.61GHz 3.8dBi, 4.3dBi Surface Mount
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

9001157 information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	KYOCERA AVX
Package	Tray
Description	1.58GHz, 1.6GHz GLONASS, GPS Ceramic Patch RF Antenna 1.56GHz ~ 1.59GHz, 1.59GHz ~ 1.61GHz 3.8dBi, 4.3dBi Surface Mount
Mounting Type	Surface Mount
Frequency Range	1.56GHz ~ 1.59GHz, 1.59GHz ~ 1.61GHz
Applications	GLONASS, GPS
Gain	3.8dBi, 4.3dBi
Number of Bands	2
VSWR	3.2, 5.8
Antenna Type	Ceramic Patch
Height (Max)	0.157" (4.00mm)
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency (Center/Band)	1.58GHz, 1.6GHz
RF Family/Standard	Navigation
Power - Max	2 W

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
