2SK3019HE3-TP Micro Commercial Components (MCC) Discrete Semiconductor Products distributor and supplier

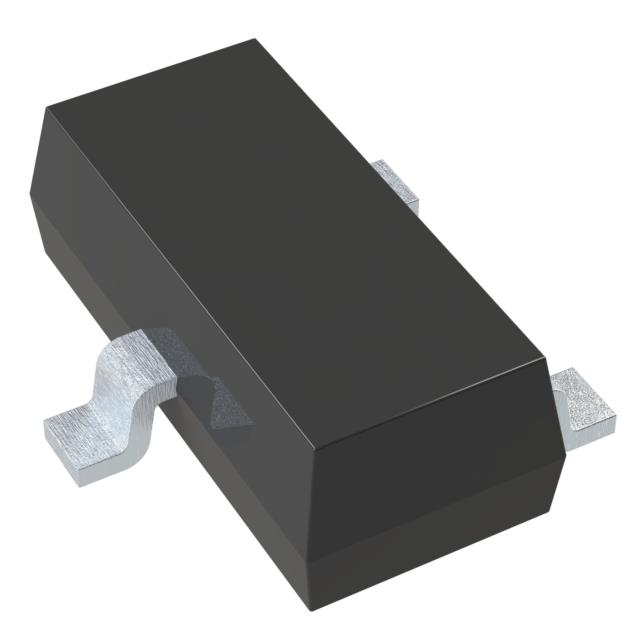

Same model may have multiple batches, images only for reference.

2SK3019HE3-TP
Manufacturer No:	2SK3019HE3-TP
Manufacturer:	Micro Commercial Components (MCC)
SUVSysrem No:	2SK3019HE3-TP
Package:	Tape & Reel (TR)
Datasheet:	2SK3019HE3-TP
Description:	N-Channel 30 V 115mA 150mW Surface Mount SOT-523
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2SK3019HE3-TP information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Micro Commercial Components (MCC)
Package	Tape & Reel (TR)
Description	N-Channel 30 V 115mA 150mW Surface Mount SOT-523
Package / Case	SOT-523
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	115mA
Rds On (Max) @ Id, Vgs	4Ohm @ 100mA, 10V
Power Dissipation (Max)	150mW
Vgs(th) (Max) @ Id	1.5V @ 100µA
Supplier Device Package	SOT-523
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	1.3 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	28 pF @ 30 V
Qualification	AEC-Q101
