NVMJS3D0N06CTWG Sanyo Semiconductor/onsemi Discrete Semiconductor Products distributor and supplier

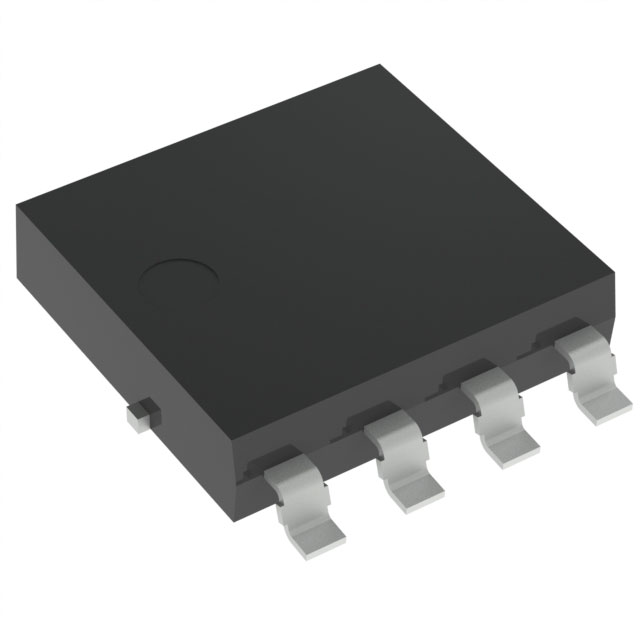

Same model may have multiple batches, images only for reference.

NVMJS3D0N06CTWG
Manufacturer No:	NVMJS3D0N06CTWG
Manufacturer:	Sanyo Semiconductor/onsemi
SUVSysrem No:	NVMJS3D0N06CTWG
Package:	Tape & Reel (TR)
Datasheet:	NVMJS3D0N06CTWG
Description:	N-Channel 60 V 26.9A (Ta), 139.3A (Tc) 4.2W (Ta), 112.5W (Tc) Surface Mount 8-LFPAK
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

NVMJS3D0N06CTWG information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Sanyo Semiconductor/onsemi
Package	Tape & Reel (TR)
Description	N-Channel 60 V 26.9A (Ta), 139.3A (Tc) 4.2W (Ta), 112.5W (Tc) Surface Mount 8-LFPAK
Package / Case	SOT-1205, 8-LFPAK56
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	26.9A (Ta), 139.3A (Tc)
Rds On (Max) @ Id, Vgs	2.9mOhm @ 27A, 10V
Power Dissipation (Max)	4.2W (Ta), 112.5W (Tc)
Vgs(th) (Max) @ Id	4V @ 135µA
Supplier Device Package	8-LFPAK
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	60 V
Gate Charge (Qg) (Max) @ Vgs	34 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	2675 pF @ 25 V
Qualification	AEC-Q101

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
