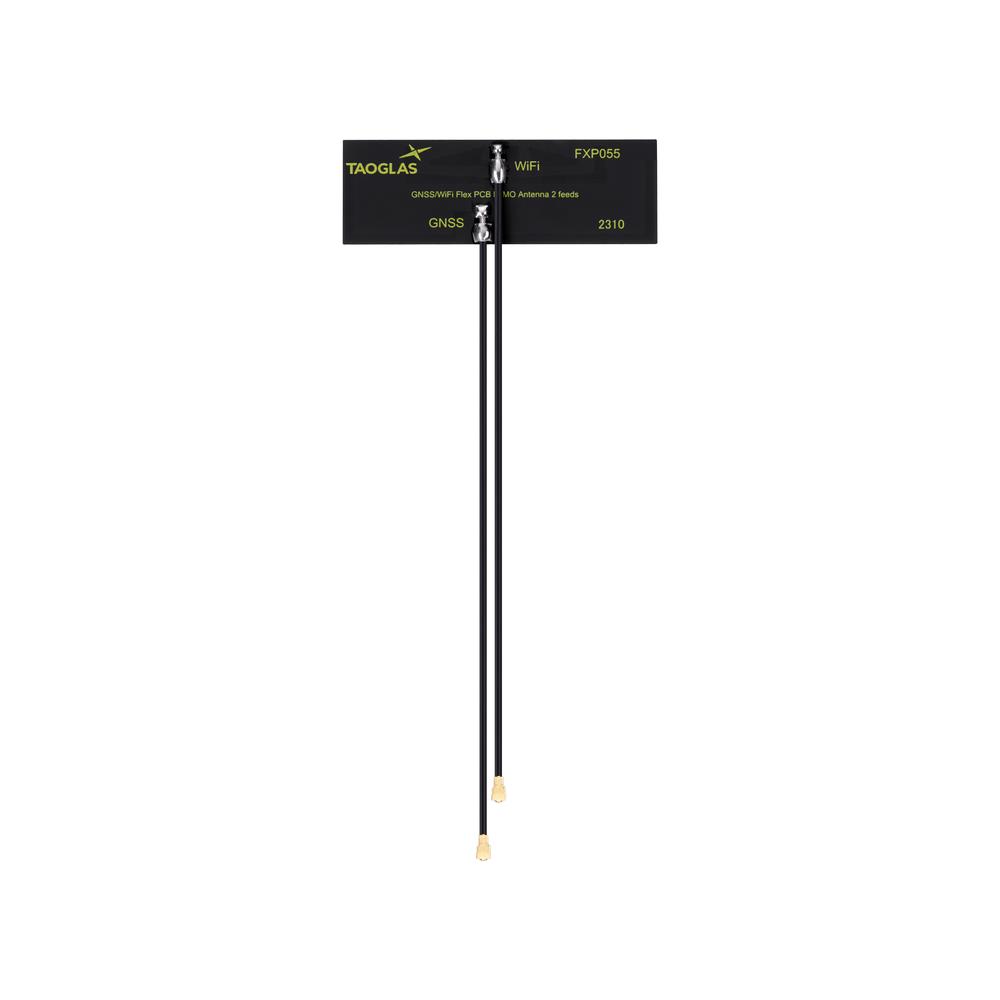

Same model may have multiple batches, images only for reference.

FXP055.A.07.C.001
Manufacturer No:	FXP055.A.07.C.001
Manufacturer:	Taoglas
SUVSysrem No:	FXP055.A.07.C.001
Package:	Bulk
Datasheet:	FXP055.A.07.C.001
Description:	1.562GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz, 6.525GHz BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS, Wi-Fi PCB Trace RF Antenna 1.559GHz ~ 1.565GHz, 1.565GHz ~ 1.585GHz, 1.596GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz -1.25dBi, -1.26dBi, -1.44dBi, -2.46dBi, -2.35dBi, -1.8dBi IPEX MHF1 (U.FL) Surface Mount
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

FXP055.A.07.C.001 information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Taoglas
Package	Bulk
Description	1.562GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz, 6.525GHz BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS, Wi-Fi PCB Trace RF Antenna 1.559GHz ~ 1.565GHz, 1.565GHz ~ 1.585GHz, 1.596GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz -1.25dBi, -1.26dBi, -1.44dBi, -2.46dBi, -2.35dBi, -1.8dBi IPEX MHF1 (U.FL) Surface Mount
Features	Cable - 100mm
Mounting Type	Surface Mount
Frequency Range	1.559GHz ~ 1.565GHz, 1.565GHz ~ 1.585GHz, 1.596GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Applications	BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS, Wi-Fi
Gain	-1.25dBi, -1.26dBi, -1.44dBi, -2.46dBi, -2.35dBi, -1.8dBi
Termination	IPEX MHF1 (U.FL)
Number of Bands	6
Antenna Type	PCB Trace
Height (Max)	0.009" (0.24mm)
Frequency Group	Wide Band
Frequency (Center/Band)	1.562GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz, 6.525GHz
RF Family/Standard	Navigation, WiFi
Power - Max	2 W
