2823096-2 TE Connectivity AMP Connectors Connectors, Interconnects distributor and supplier

Same model may have multiple batches, images only for reference.

2823096-2
Manufacturer No:	2823096-2
Manufacturer:	TE Connectivity AMP Connectors
SUVSysrem No:	2823096-2
Package:	Tube
Datasheet:	2823096-2

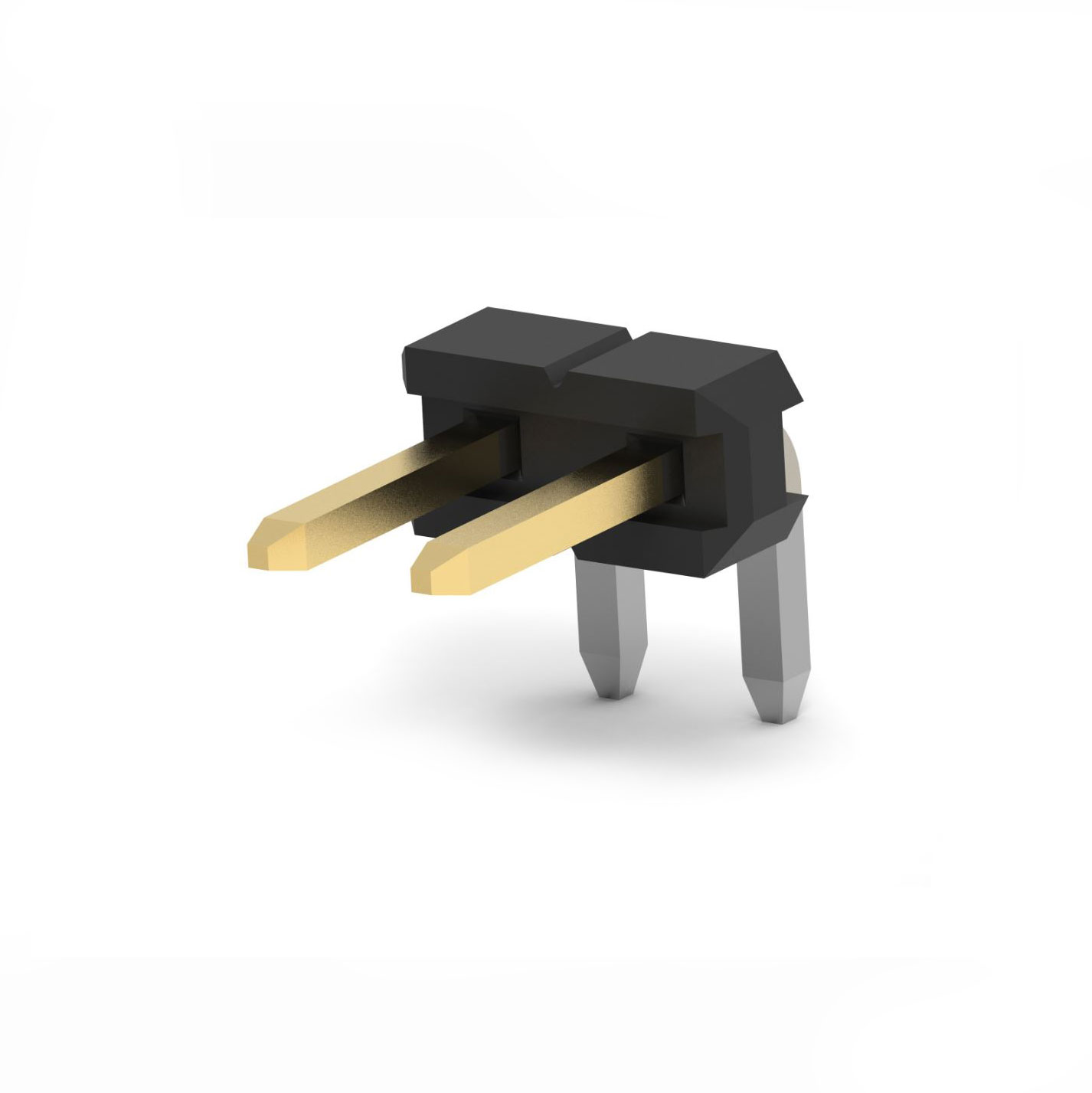

Description:	Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2823096-2 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Package	Tube
Description	Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
Connector Type	Header, Breakaway
Voltage Rating	125VAC/DC
Current Rating (Amps)	2A
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Insulation Color	Black
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.94µin (0.100µm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	12.0µin (0.30µm)
Contact Shape	Square
Contact Length - Post	0.110" (2.80mm)
Insulation Height	0.079" (2.00mm)
Shrouding	Unshrouded
Insulation Material	Thermoplastic
Contact Length - Mating	0.157" (4.00mm)
