AT13-12PA-BM20CP Tuchel / Amphenol Connectors, Interconnects distributor and supplier

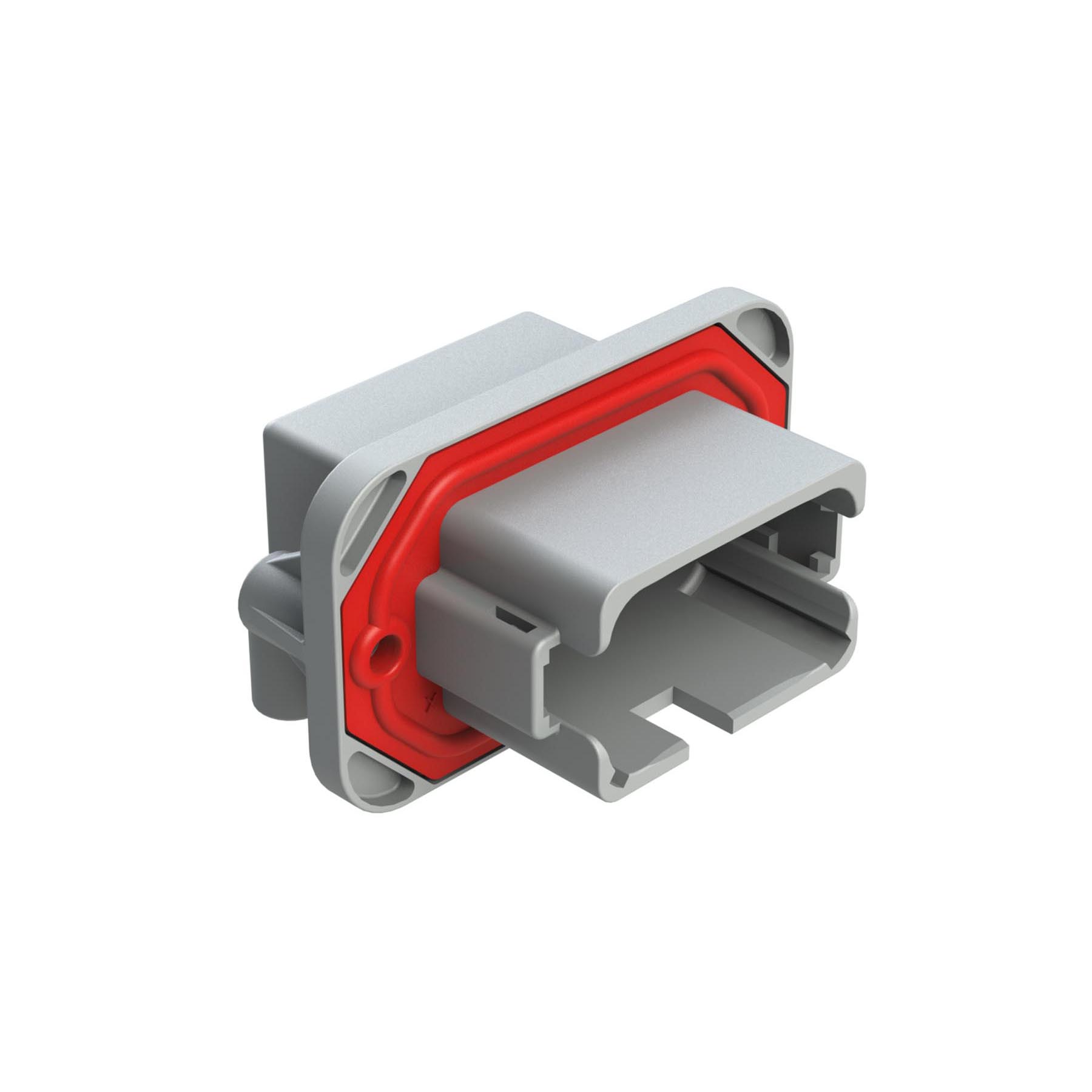

Same model may have multiple batches, images only for reference.

AT13-12PA-BM20CP
Manufacturer No:	AT13-12PA-BM20CP
Manufacturer:	Tuchel / Amphenol
SUVSysrem No:	AT13-12PA-BM20CP
Package:	Tray
Datasheet:	AT13-12PA-BM20CP
Description:	Connector Header Panel Mount, Through Hole, Right Angle 12 position
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AT13-12PA-BM20CP information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Tuchel / Amphenol
Package	Tray
Description	Connector Header Panel Mount, Through Hole, Right Angle 12 position
Features	Board Guide, Mounting Flange
Connector Type	Receptacle
Voltage Rating	250VDC
Current Rating (Amps)	13A
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	12
Number of Rows	2
Style	Board to Cable/Wire
Operating Temperature	-55°C ~ 125°C
Contact Type	Male Pin
Fastening Type	Latch Holder
Number of Positions Loaded	All
Termination	Solder
Ingress Protection	IP67
Contact Material	Copper Alloy
Insulation Color	Gray
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Shape	Circular
Contact Length - Post	0.122" (3.10mm)
Insulation Height	1.390" (35.30mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Thermoplastic
Row Spacing - Mating	0.358" (9.10mm)
